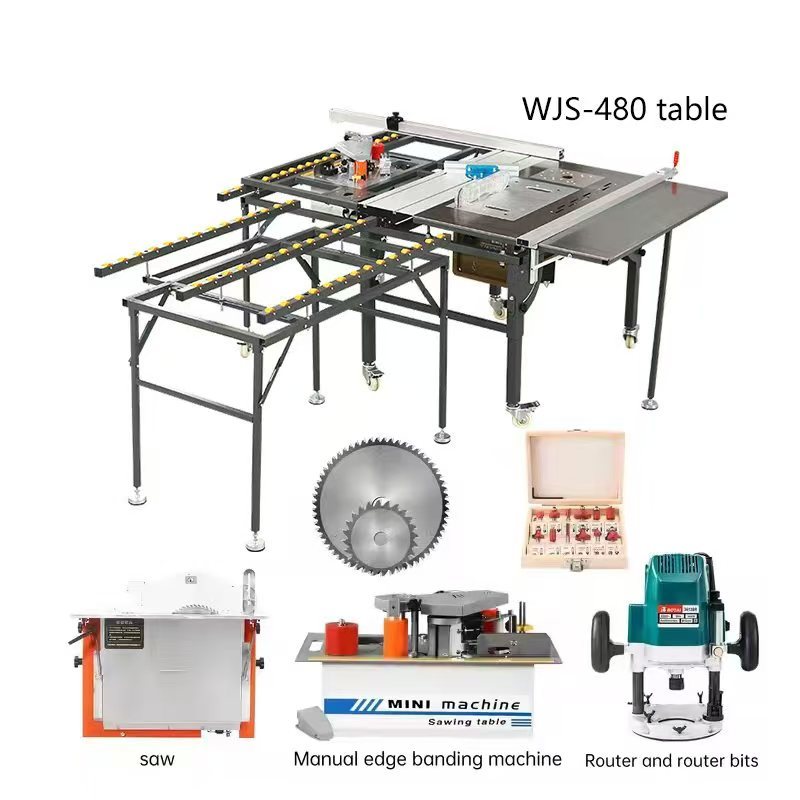

WJS480 Sliding Table Panel Saw Machine for Woodworking Furniture

Brand Name : GTS

Place of Origin : Shandong, China

MOQ : 1

type : Panel Saw

use : Woodworking

style : Horizontal

place of origin : Shandong, China

brand name : Superstar

voltage : 380/220V

dimension(l*w*h) : 3000*1100*1200

warranty : 2 years

weight (kg) : 400 KG

power (kw) : 5.5

key selling points : Multifunctional

max.cutting height at 90°(mm) : 80mm

max.cutting height at 45°(mm) : 60mm

max. length of workpiece (mm) : 3200mm

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor

Product name : Sliding Table Panel Saw

Diameter of main saw : 300mm

Main saw speed : 4000/6000/min

Main saw power : 5.5kw

Side Saw Diameter : 120mm

Revolving speed of auxiliary saw : 8000/min

Auxiliary saw power : 1.1kw

Voltage : 380V

Size of the whole machine : 3000*1100*1200mm

Weight : 400kg

Condition : New

Warranty of core components : 2 years

Use : Seal On Furniture Edge PVC

Application : Furniture factories

Applicable Industries : Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction works , Advertising Company, Wood cutting

Contact Now

Woodworking Furniture 3200mm High Precision 90 Degree & 45 Degree Sliding Table Panel Saw For Chipboard Mdf Solid Wood

Product Description

Woodworking Furniture 3200mm High Precision 90 Degree & 45 Degree Sliding Table Panel Saw For Chipboard MDF Solid Wood

WJS480 Sliding Table Panel Saw Machine for Woodworking Furniture

Sliding Panel Saw Feature:

This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.

Superstar Brand CNC Panel Saw, providing various size and models. With 20years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.

Technical Parameters
Product name	MJS480 Precise Panel Saw/Sliding Table Saw
Diameter of main saw	300mm
Main saw speed	4000/6000/min
Main saw power	5.5kw
Side Saw Diameter	120mm
Auxiliary saw power	1.1kw
Voltage	380V
Weight	400kg
Size of the whole machine	320011001200mm

Other Types Of Sliding Table Saw

Model	MJ6128-45Y	MJ6128-90Y	MJ6128-45Z	MJ6128-90Z
Sliding table length	2800mm	2800mm	2800mm	2800mm
Max.Extent height of main saw blade	80mm	80mm	80mm	80mm
Saw group titled angle	0-45°	90°	0-45°	90°
Main diameter	250-300mm	250-300mm	250-300mm	250-300mm
Main spindle rotation speed	4000/6000r.p.m	4000/6000r.p.m	4000/6000r.p.m	4000/6000r.p.m
Main saw motor power	4kw	4kw	4kw	4kw
Scoring blade rpm	8000r.p.m	8000r.p.m	8000r.p.m	8000r.p.m
Scoring motor	0.75kw	0.75kw	0.75kw	0.75kw

Model	MJ6138-45Y	MJ6138-45Z	MJ6138-90Y	MJ6138-90Z
Sliding table length	3800mm	3800mm	3800mm	3800mm
Max.Extent height of main saw blade	80mm	80mm	80mm	80mm
Saw group titled angle	0-45°	0-45°	90°	90°
Main diameter	250-300mm	250-300mm	250-300mm	250-300mm
Main spindle rotation speed	4000/5600r.p.m	4000/5600r.p.m	4000/5600r.p.m	4000/5600r.p.m
Main saw motor power	3-5.5kw	3-5.5kw	3-5.5kw	3-5.5kw
Scoring blade rpm	8000r.p.m	8000r.p.m	8000r.p.m	8000r.p.m
Scoring motor	0.75kw	0.75kw	0.75kw	0.75kw
Scoring diam	120mm	120mm	120mm	120mm

Detailed Images

Application:

Panel Saw Machine Application:

CX - MJ45 Sliding Table Precision Panel Saw,Small body, small invest, small space needed, multifunction!

Apply to processing all kinds of density boards, shaving boards, wood-based Panels , ABS Panels, PVC Panels , organic glass plates and solid wood and others with wood structure and similar hardness. It is the necessary working tool for furniture production and decoration industry.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
